Quick Details

  • Type: Flashlights
  • Light Source: LED
  • LED Light Source: UV LED
  • Flashlight Type: UV Flashlight
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: UVATA
  • Model Number: UPF100
  • Battery Type: AAA
  • Usage: Industrial
  • Power Source: Rechargeable Battery
  • Lighting Period (h): 3
  • Certification: CE, RoHS
  • IP Rating: IP33
  • Lamp Body Material: Aluminum
  • Warranty(Year): 1
  • LED chips: Nichia
  • Wavelength: 365nm, 385nm, 395nm, 405nm
  • LED life: >20,000H
  • customized: available
  • OEM: available

Packaging & Delivery

Packaging Details: Carton, 29*26*12cm
Delivery Detail: Shipped in 1 days after payment
Main Products

1.More products of Uvata high quality uv curing flashlight for UV glue and UV ink curing

Product Description

2. Pictures of uv spot curing system

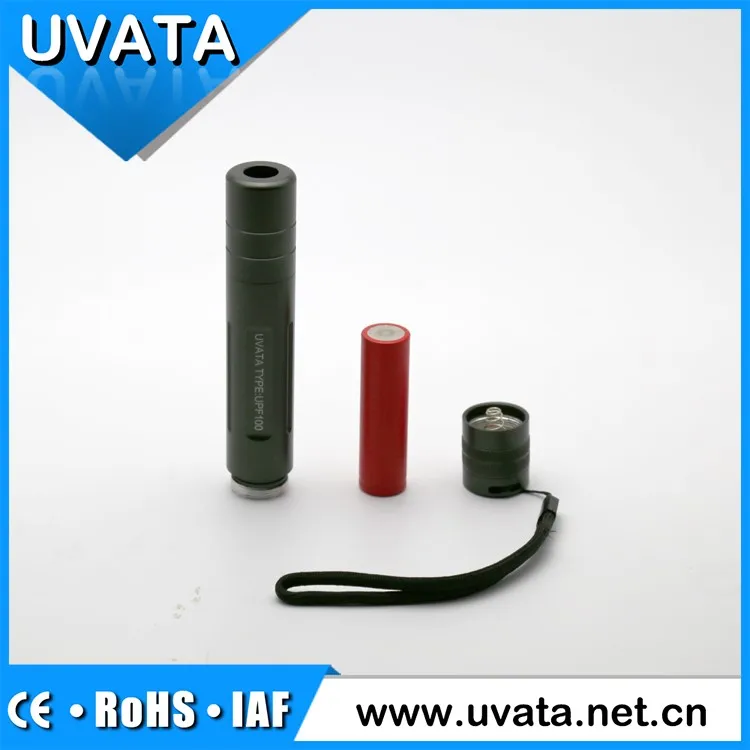

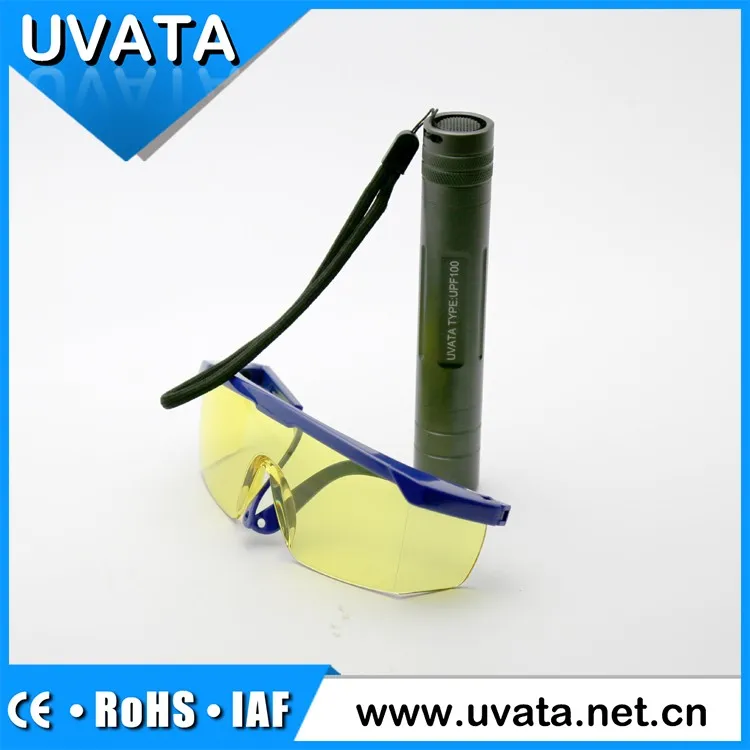

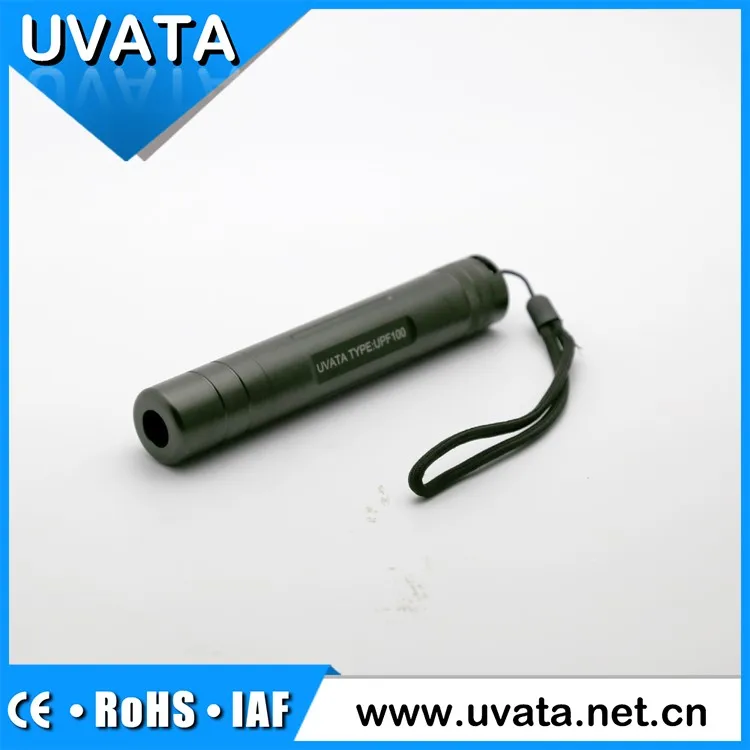

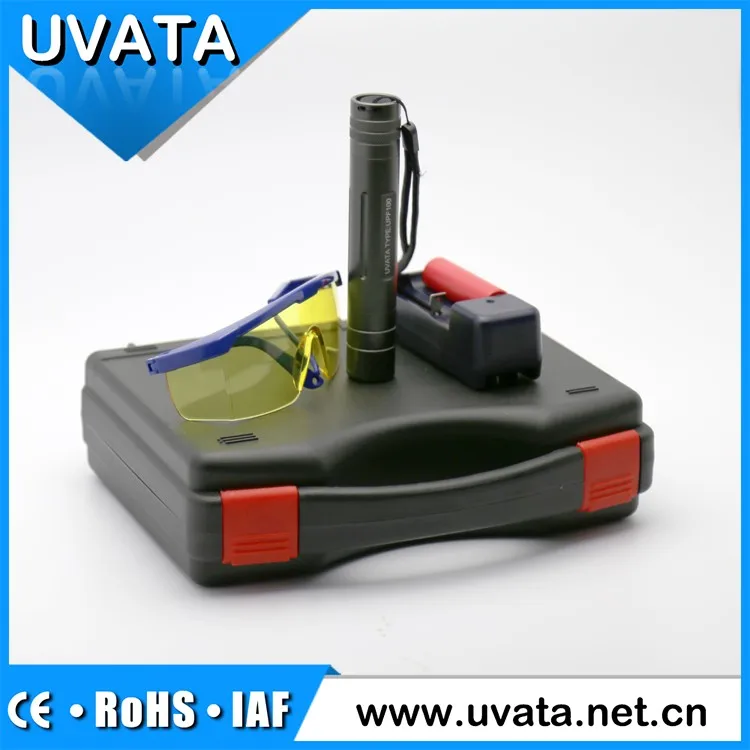

3. Portable UV LED Light UPF100(UV curing field)

Wavelength
365/385±5nm or custom-made
Light working time
high power UV LED 20000H
Intensity
max.8w/cm2
Light spot
2/3/4/5/6/7/8/10/15/20mm/various type
Working mode
Mode
high power 100% power
Working time
over 3H at max.power

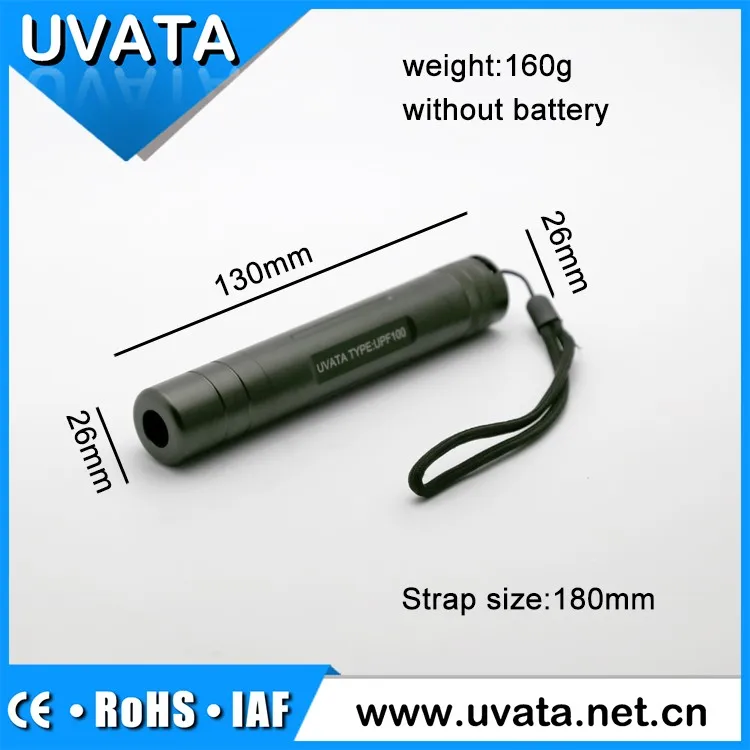

Diameter
appr.26mm
Length
appr.150mm
Weight
appr.160g
Packing
sling,packing box
Warranty
three month

Portable UV LED Light Model UPF100 series specification

Lens
Lens Unit model
Spot diameter
Recommended
working distance
Peak Irradiation
mw/cm^2
note
Spot lens(365nm)
UPUL003
3mm
9mm
9750














Note:tested by UE520 UV Radiometer
UPUL004
4mm
12mm
6625
UPUL005
5mm
14mm
5040
UPUL006
6mm
16mm
4125
UPUL007
7mm
17mm
2625
UPUL008
8mm
25mm
1688
UPUL010
10mm
27mm
1400
UPUL012
12mm
40mm
1125
UPUL015
15mm
45mm
550
Circular lens
UPULC16
8-16mm ringlike
20mm
Line beam lens
UPULL15
3*15mm
12mm
800
UPULL20
5*20mm
20mm
700
UPULLX
by order
Long Distance Spot
5mm
7mm
90° side view Spot
(round spot,ringlike spot,linear spot) all can be 90° side view spot.Recommend distance of 90° side view spot is half of the original with the same illuminance
Fiber
Fiber
c
optional
optional
suitable for smal
Rod lens
UPULR04
3mm
7mm
5840

4. Exploded View And Applications of Product

Application:

 UV glue and UV ink curing

Electronic components, hard disc, micro-generator,
earphone, watch precision components manufacturing;
printing machine, DVD/CD light head, optical lens,
LCD sealing curing; medical equipment, artwork, etc.

5. Why Choose UVATA

1. UVATA has established good reputation and high quality position and it supplies high quality UV lights.
2. Our products can reduce environmental load and will be widely applied to UV curing and related industry.
3. As an optoelectronic equipment manufacturer, we also developed UV detector and feedback system to monitor our producing and ensure our quality.
4. UVATA also supplies necessary brackets, translation stage and many necessary accessories to customers which saves customer’s time and energy.

6. Certifications Of Products

Packaging & Shipping

7. Trade Items Of Products

Payment
T/T or Western Union
Port
Shanghai
MOQ
1 PCS
Supply Ability
3000 Unit/Units per Month
OEM
Accept
Delivery
1-2 working days after receiving the payment

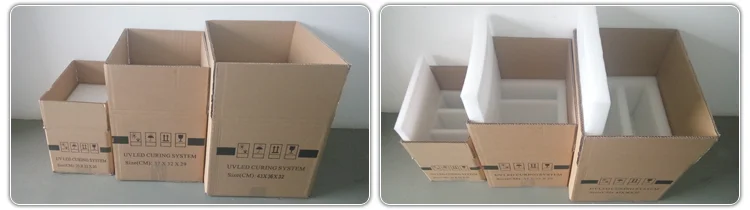

8. Packaging Of Products

------Standard packing. Carton size: 35*22*20cm, 37*32*29cm, 43*36*32cm.

Company Information

9. Introduction Of Company

Uvata (Shanghai)Precision Optoelectronics Co.,Ltd.
UVATA Company, headquartering in Shanghai, is a leading manufacturer specialized in UV area, optical lens and apparatus solutions. Established in 2008, our company has a whole set of product line and integration solution in UV industry, from manufacture to detection. By supplying different series of UV LED light, optical lenses, detection devices and professional services, we could meet customer’s diverse needs came from different manufacturers in the world and achieve our pursuit for speed and innovation. With many global marketing institutions in USA, Japan, Italy, South Korea, Taiwan and so on, we have gained the global customers’ trust and cooperation through constantly enhancing our innovation ability, outstanding customization ability and gradually prefect deliverability. In the related UV field, we continuously supply our advanced technology, energy-saving and environment friendly products to customers in different countries and areas which also made our products numerous in varieties.
